VMProtect分析-虚拟化流程

2023-12-09

一、没有大炮我们自己造

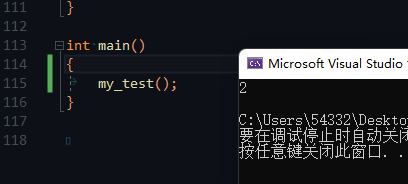

首先编写一个简单的程序。

1
2
3
4
5
6
7
int main()
{
	int a = 1;
	a = a + 1;
	printf("%d\n",a);
	return 0;
}

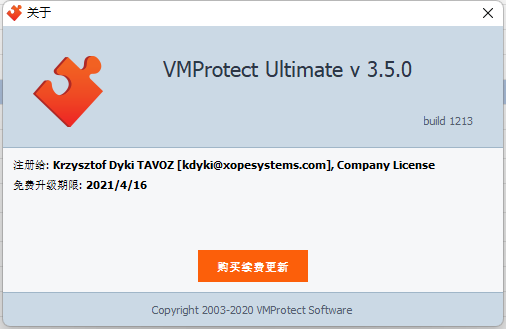

编译后给程序添加vmp保护壳，这里选择的VMP版本为v3.5.0。

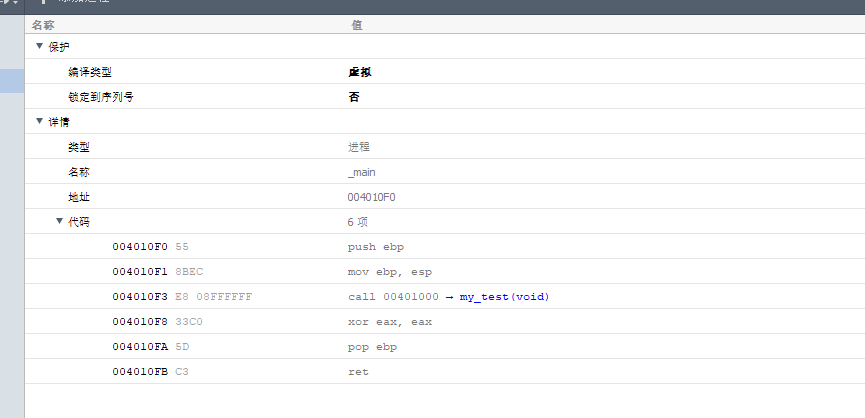

保护的函数为main函数，编译类型修改为虚拟。

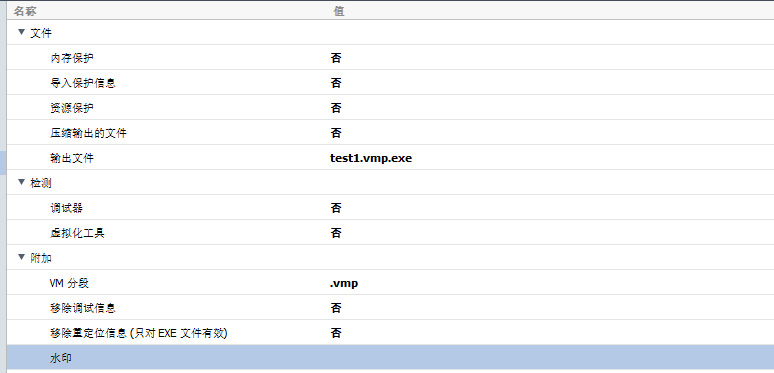

并且关闭一系列保护。

编译完成后，可看到程序体积有一个翻倍增加。

二、只能拉一点点

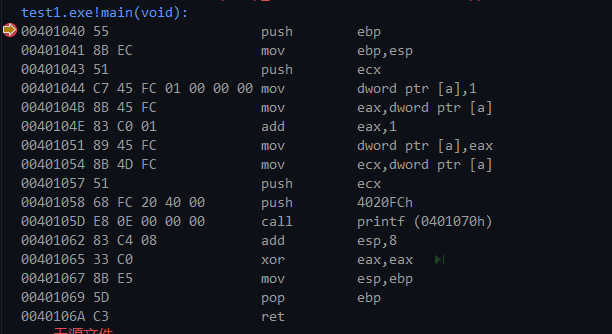

首先对原程序的汇编进行一个简单查看，用vs在main函数中打下断点运行后，查看反汇编窗口。

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
00401040 55                   push        ebp  						;ebp=0x19ff74
00401041 8B EC                mov         ebp,esp  					;ebp=0x19FF2C
00401043 51                   push        ecx  						;ecx=0x0
00401044 C7 45 FC 01 00 00 00 mov         dword ptr [ebp-4],1  		;ebp-4=0x19FF28	{ int a = 1; }
0040104B 8B 45 FC             mov         eax,dword ptr [ebp-4]  	;eax=0x1
0040104E 83 C0 01             add         eax,1  					;eax=0x2
00401051 89 45 FC             mov         dword ptr [ebp-4],eax  	;ebp-4=0x19FF28	{ a = a + 1; }
00401054 8B 4D FC             mov         ecx,dword ptr [ebp-4]  	;ecx=0x2
00401057 51                   push        ecx
00401058 68 FC 20 40 00       push        4020FCh  					;"%d\n"
0040105D E8 0E 00 00 00       call        00401070  				;{ printf("%d\n",a); }
00401062 83 C4 08             add         esp,8
00401065 33 C0                xor         eax,eax
00401067 8B E5                mov         esp,ebp
00401069 5D                   pop         ebp
0040106A C3                   ret

经过对vmp的分析，可知vmp会将一条代码指令进行拆分后以push和pop命令进行实现，其中push和pop为vmp自实现的函数，这种被vmp自实现用来代替原有指令的函数叫做handler;解密字节码并跳转到对应的handler，这个过程叫做dispatch.例如mov ebp,esp的执行在vmp下会被修改为如下代码：

并且vmp会对通用寄存器有自己的解释。

Text
1
2
3
4
5
6
7
8
EAX:通用寄存器
EDX:通用寄存器
ECX:通用寄存器
EDI:opcode
ESP:虚拟机的栈顶,v_esp
ESI:实际堆栈
EBP:虚拟机的执行地址,v_eip
EBX:滚动key

同时也有定义了自己的寄存器，用来存放一些临时数据。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
struct vm_context
{
	uint32_t R0;	//0x00
	uint32_t R1;	//0x04
	uint32_t R2;	//0x08
	uint32_t R3;	//0x0C
	uint32_t R4;	//0x10
	uint32_t R5;	//0x14
	uint32_t R6;	//0x18
	uint32_t R7;	//0x1C
	uint32_t R8;	//0x20
	uint32_t R9;	//0x24
	uint32_t R10;	//0x28
	uint32_t R11;	//0x2C
	uint32_t R12;	//0x30
	uint32_t R13;	//0x34
	uint32_t R14;	//0x38
	uint32_t R15;	//0x3C
}

三、时间会告诉你答案

把加了vmp壳的程序拖入OD，能看到属于VMP的入口点。

其中push的内容为被加密了的opcode，opcode存放着的是所有的handler地址和一些操作寄存器的数据。

1、指令分析

下列所有的代码均为手工取出虚拟化后的代码，并且所有加了v或者v_前缀的内容均值的是vmp自定义的数据。由于vmp在执行函数时会退出虚拟机，函数执行完毕后重新进入虚拟机，因此流程只跟踪到执行printf函数完毕。

VMEntry

Text
1
2
00475751    68 C3365BBC     push 0xBC5B36C3
00475756    E8 BE1FFAFF     call test1_vm.00417719

VMInit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
00417719    50              push eax                                 ; 保存堆栈
00417720    51              push ecx
00417721    9C              pushfd
00417724    53              push ebx
00417727    56              push esi
0041772E    57              push edi
00417734    52              push edx
0041773D    55              push ebp
00417742    BA 00000000     mov edx,0x0
00417747    52              push edx
0041774A    8B7C24 28       mov edi,dword ptr ss:[esp+0x28]         ;0xBC5B36C3获取外层push的参数
00417756    4F              dec edi                                 ;开始解密参数
0041775C    81F7 5442907B   xor edi,0x7B904254
0041776F    F7D7            not edi
0041777B    F7DF            neg edi
00417781    F7D7            not edi
0041778A    81EF 98071636   sub edi,0x36160798
00417797    C1CF 03         ror edi,0x3
004177A2    8D3C17          lea edi,dword ptr ds:[edi+edx]			;EDI=v_eip,内容以opcode形式存放
004177A5    8BF4            mov esi,esp								;保存原始esp
004177A7    81EC C0000000   sub esp,0xC0							;开辟新堆栈,vm_context
004177AD    8BDF            mov ebx,edi								;初始化滚动Key
004177B6    B8 00000000     mov eax,0x0
004177C2    2BD8            sub ebx,eax
004177CE    8D2D CE774100   lea ebp,dword ptr ds:[0x4177CE]			;获取虚拟机代码的起始地址
004177D7    8B17            mov edx,dword ptr ds:[edi]				;读取opcode
004177DA    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0043DC1F    33D3            xor edx,ebx         					;解密
0043DC26    F7DA            neg edx
0043DC29    D1CA            ror edx,1
00469F4B    4A              dec edx
00469F4C    81F2 88622457   xor edx,0x57246288
00469F57    81EA B426A803   sub edx,0x3A826B4
00469F63    0FCA            bswap edx
00469F66    81F2 F21FD256   xor edx,0x56D21FF2
004263AF    C1CA 03         ror edx,0x3
004263B6    33DA            xor ebx,edx								;更新滚动key
004263B8    03EA            add ebp,edx								;计算出handler地址
004263BA  ^ FFE5            jmp ebp                                 ;test1_vm.004343B9

vPop r10

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
004343B9    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
004343C4    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
004343C7    81C7 01000000   add edi,0x1								;跳过读取的字节
004343CD    32C3            xor al,bl								;解密读取到的字节
004343CF    04 95           add al,0x95
004343D1    F6D8            neg al
0040ACDA    FEC0            inc al
0040ACDE    34 28           xor al,0x28
0040ACEB    32D8            xor bl,al								;更新滚动key
0040ACEF    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x28
0040ACF5    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
0040ACF8    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0040AD03    33CB            xor ecx,ebx                         	;解密读取到的4字节
0047679A    C1C9 02         ror ecx,0x2
0047679D    81F1 7E7F9C09   xor ecx,0x99C7F7E
00448CC5    49              dec ecx
00448CC6    81F1 F25E4677   xor ecx,0x77465EF2
00448CCD    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
00448CD3    33D9            xor ebx,ecx								;更新滚动key
00448CDA    03E9            add ebp,ecx
00449A6E    55              push ebp                                ;压栈下一个handler地址后跳转
00449A6F    C3              retn									;0x46FF2C

vPop r12

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0046FF2C    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
0046FF2E    8DB6 04000000   lea esi,dword ptr ds:[esi+0x4]			;原始esp+0x4, 此处两句指令对应 pop ecx
0046FF37    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
0046FF3A    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]			;跳过读取的字节
0046FF48    32C3            xor al,bl								;解密读取到的字节
0046FF53    04 95           add al,0x95
00446B15    F6D8            neg al
00454B5C    FEC0            inc al
00454B61    34 28           xor al,0x28
00454B64    32D8            xor bl,al								;更新滚动key
00454B66    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x30
00454B6C    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00454B72    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
00454B7A    33CB            xor ecx,ebx                             ;解密读取到的4字节
00454B7C    C1C9 02         ror ecx,0x2
00454B7F    81F1 7E7F9C09   xor ecx,0x99C7F7E
00422059    49              dec ecx
0042205D    81F1 F25E4677   xor ecx,0x77465EF2
00422065    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
0042206B    33D9            xor ebx,ecx
0042206D    03E9            add ebp,ecx								;更新滚动key
00409147   /FFE5            jmp ebp                                 ;0x00453841

vPop r8

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
00453841    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
00453846    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
00453854    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
00453857    81C7 01000000   add edi,0x1								;跳过读取的字节
00453866    32C3            xor al,bl								;解密读取到的字节
0045386E    04 95           add al,0x95
00453870    F6D8            neg al
00458E65    FEC0            inc al
00458E6B    34 28           xor al,0x28
00458E6D    32D8            xor bl,al								;更新滚动key
00458E6F    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x20
00458E7C    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00479B0C    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0041B623    33CB            xor ecx,ebx
00470224    C1C9 02         ror ecx,0x2
00470227    81F1 7E7F9C09   xor ecx,0x99C7F7E
004452FB    49              dec ecx
004452FC    81F1 F25E4677   xor ecx,0x77465EF2
00445305    81C1 1A29644A   add ecx,0x4A64291A
0044530B    33D9            xor ebx,ecx								;更新滚动key
0044530D    03E9            add ebp,ecx
0043AD66    55              push ebp
0043AD67    C3              retn									;0x00430521

vPop r6

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
00430521    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
00430523    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
00430529    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
004552EE    81C7 01000000   add edi,0x1								;跳过读取的字节
004552F4    32C3            xor al,bl								;解密读取到的字节
004552F9    04 95           add al,0x95
004552FB    F6D8            neg al
004552FD    FEC0            inc al
00455303    34 28           xor al,0x28
00455309    32D8            xor bl,al								;更新滚动key
0045530C    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x18
00455311    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00455313    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0045531F    33CB            xor ecx,ebx
00455324    C1C9 02         ror ecx,0x2
0045532B    81F1 7E7F9C09   xor ecx,0x99C7F7E
00455331    49              dec ecx
00455332    81F1 F25E4677   xor ecx,0x77465EF2
00455339    81C1 1A29644A   add ecx,0x4A64291A
00455345    33D9            xor ebx,ecx								;更新滚动key
00455347    03E9            add ebp,ecx
004781EB  ^\FFE5            jmp ebp                                 ;0x0043BD4C

vPop r3

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
0043BD4C    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
0043BD55    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
0043BD5B    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
0043BD66    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]			;跳过读取的字节
0043BD72    32C3            xor al,bl								;解密读取到的字节
0043BD74    04 95           add al,0x95
0043BD7A    F6D8            neg al
00479730    FEC0            inc al
00424206    34 28           xor al,0x28
00424208    32D8            xor bl,al								;更新滚动key
0042420C    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0xC
0042420F    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00424211    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
00424217    33CB            xor ecx,ebx
0043796F    C1C9 02         ror ecx,0x2
0041F44A    81F1 7E7F9C09   xor ecx,0x99C7F7E
004104C7    49              dec ecx
004104C8    81F1 F25E4677   xor ecx,0x77465EF2
004104CE    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
004104D5    33D9            xor ebx,ecx								;更新滚动key
004104D7    03E9            add ebp,ecx
004536AD    55              push ebp
004536AE    C3              retn									;0x0045E179

vPop r5

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0045E179    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
0045E181    8DB6 04000000   lea esi,dword ptr ds:[esi+0x4]			;原始esp+0x4, 此处两句指令对应 pop ecx
0045E187    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
0045E18A    81C7 01000000   add edi,0x1								;跳过读取的字节
0045E193    32C3            xor al,bl								;解密读取到的字节
0045E197    04 95           add al,0x95
0045E199    F6D8            neg al
0047C824    FEC0            inc al
00459FC2    34 28           xor al,0x28
00459FC8    32D8            xor bl,al								;更新滚动key
00459FCC    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x14
00459FCF    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00459FD1    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
00459FD7    33CB            xor ecx,ebx
00459FD9    C1C9 02         ror ecx,0x2
00459FDC    81F1 7E7F9C09   xor ecx,0x99C7F7E
00459FE2    49              dec ecx
00459FE3    81F1 F25E4677   xor ecx,0x77465EF2
00459FEE    81C1 1A29644A   add ecx,0x4A64291A
00459FF4    33D9            xor ebx,ecx
00459FF6    03E9            add ebp,ecx								;更新滚动key
00479CA7  ^\FFE5            jmp ebp                                 ;0x0046D3FB

vPop r9

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0046D3FB    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
0046D3FD    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
0046D403    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
0046D407    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]			;跳过读取的字节
0046D413    32C3            xor al,bl								;解密读取到的字节
0046D415    04 95           add al,0x95
0046D41B    F6D8            neg al
004264F7    FEC0            inc al
004264F9    34 28           xor al,0x28
004264FC    32D8            xor bl,al								;更新滚动key
00426500    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x24
00426503    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00426508    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
0042650F    33CB            xor ecx,ebx
00426512    C1C9 02         ror ecx,0x2
0047CDC0    81F1 7E7F9C09   xor ecx,0x99C7F7E
00483DE1    49              dec ecx
00483DE8    81F1 F25E4677   xor ecx,0x77465EF2
00483DF9    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
00483E02    33D9            xor ebx,ecx								;更新滚动key
00483E0B    03E9            add ebp,ecx
0047FFF9  ^\FFE5            jmp ebp                                 ;0x0046C4CB

vPop r2

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
0046C4CB    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
0046C4CD    8DB6 04000000   lea esi,dword ptr ds:[esi+0x4]			;原始esp+0x4, 此处两句指令对应 pop ecx
0046C4D7    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
0046C4DD    81C7 01000000   add edi,0x1								;跳过读取的字节
0046C4E3    32C3            xor al,bl								;解密读取到的字节
0046C4EA    04 95           add al,0x95
00445326    F6D8            neg al
00445328    FEC0            inc al
0044532B    34 28           xor al,0x28
00445332    32D8            xor bl,al								;更新滚动key
00445334    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x8
0044533F    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00445346    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0044534C    33CB            xor ecx,ebx
0044534E    C1C9 02         ror ecx,0x2
00445351    81F1 7E7F9C09   xor ecx,0x99C7F7E
00478CFC    49              dec ecx
00478CFD    81F1 F25E4677   xor ecx,0x77465EF2
0046EDD9    81C1 1A29644A   add ecx,0x4A64291A
0046EDE5    33D9            xor ebx,ecx								;更新滚动key
0046EDEA    03E9            add ebp,ecx
0043713E    55              push ebp
0043713F    C3              retn									;0x00474E9C

vPop r4

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
00474E9C    8B0E            mov ecx,dword ptr ds:[esi]              ;读取原始esp
00474EA0    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
00474EAB    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
00474EAE    81C7 01000000   add edi,0x1								;跳过读取的字节
00474EB6    32C3            xor al,bl								;解密读取到的字节
00445C08    04 95           add al,0x95
00445C0B    F6D8            neg al
00483885    FEC0            inc al
00483887    34 28           xor al,0x28
0048388A    32D8            xor bl,al								;更新滚动key
00483890    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x10
00483895    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
004376C4    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
004745C8    33CB            xor ecx,ebx
0044E82C    C1C9 02         ror ecx,0x2
0044E82F    81F1 7E7F9C09   xor ecx,0x99C7F7E
004072B1    49              dec ecx
004072B5    81F1 F25E4677   xor ecx,0x77465EF2
004072BB    81C1 1A29644A   add ecx,0x4A64291A
004072C5    33D9            xor ebx,ecx								;更新滚动key
004072C9    03E9            add ebp,ecx
00471DC6    55              push ebp
00471DC7    C3              retn									;0x00476E65

vPop r0

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
00476E65    8B0E            mov ecx,dword ptr ds:[esi]              ;读取原始esp
00476E67    8DB6 04000000   lea esi,dword ptr ds:[esi+0x4]			;原始esp+0x4, 此处两句指令对应 pop ecx
00476E75    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
0047D681    81C7 01000000   add edi,0x1								;跳过读取的字节
0047D687    32C3            xor al,bl								;解密读取到的字节
0047D689    04 95           add al,0x95
0047D694    F6D8            neg al
0047C676    FEC0            inc al
0047C67B    34 28           xor al,0x28
0047C67F    32D8            xor bl,al								;更新滚动key
0047C681    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x0
0047C68C    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
0047C68E    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0046C29E    33CB            xor ecx,ebx
0046C2A1    C1C9 02         ror ecx,0x2
0046C2A8    81F1 7E7F9C09   xor ecx,0x99C7F7E
0044B630    49              dec ecx
0044B631    81F1 F25E4677   xor ecx,0x77465EF2
0044B637    81C1 1A29644A   add ecx,0x4A64291A
0044B648    33D9            xor ebx,ecx								;更新滚动key
0044B64D    03E9            add ebp,ecx
00422D63   /FFE5            jmp ebp                                 ;0x00451F05

vPop r15

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
00451F05    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp
00451F0A    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
00451F15    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
00451F18    81C7 01000000   add edi,0x1								;跳过读取的字节
00451F1E    32C3            xor al,bl								;解密读取到的字节
00451F20    04 95           add al,0x95
00451F25    F6D8            neg al
004718C3    FEC0            inc al
004718C5    34 28           xor al,0x28
004718CA    32D8            xor bl,al								;更新滚动key
004718CC    890C04          mov dword ptr ss:[esp+eax],ecx			;eax=0x3C
004718CF    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
004718D1    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
004718D7    33CB            xor ecx,ebx
004718D9    C1C9 02         ror ecx,0x2
004718DC    81F1 7E7F9C09   xor ecx,0x99C7F7E
004407D7    49              dec ecx
004407D8    81F1 F25E4677   xor ecx,0x77465EF2
004407E3    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
004407EE    33D9            xor ebx,ecx								;更新滚动key
004407F0    03E9            add ebp,ecx
004407F2    FFE5            jmp ebp                                 ;0x0045325C

vPush ebp(0x19ff74)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
0045325C    0FB60F          movzx ecx,byte ptr ds:[edi]				;读取opcode的第一个字节
00453267    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]			;跳过读取的字节
0045326D    32CB            xor cl,bl								;解密读取到的字节
0045326F    F6D9            neg cl
00453272    80F1 0E         xor cl,0xE
00453278    80E9 21         sub cl,0x21
00453282    F6D9            neg cl
0045328E    80F1 E2         xor cl,0xE2
00453296    32D9            xor bl,cl								;更新滚动key
004532A5    8B140C          mov edx,dword ptr ss:[esp+ecx]			;从v_esp中读取数据到edx
004532A8    81EE 04000000   sub esi,0x4								;原始esp-0x4
004532B4    8916            mov dword ptr ds:[esi],edx				;edx=0x0019FF74,把读到的数据存到esp中,此处两句指令对应 push edx
004532BD    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
004532C4    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
0041B011    33CB            xor ecx,ebx                             ;解密读取到的字节
0041B018    81E9 8C1F9123   sub ecx,0x23911F8C
0041B01E    D1C9            ror ecx,1
004692ED    49              dec ecx
004692F3    F7D1            not ecx
004692FA    33D9            xor ebx,ecx								;更新滚动key
004692FC    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]			;edx=v_esp+0x60
0046263A    3BF2            cmp esi,edx								;原始esp与edx比较
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C					;如果原始esp>edx就正常返回,防止原始esp内容覆盖了vm_context
00481408    8BC4            mov eax,esp								;将v_esp传给eax
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]			;把原始esp上台0x80大小,然后把地址传给edx
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx								;把新的堆栈地址传给v_esp
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi] ;把原来v_esp的内容拷贝到新的v_esp
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn									;0x004786D0

vPush esp(0x0019FF2C)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
004786D0    8BC6            mov eax,esi								;原始esp传给eax,当前esp保存的是变量a的地址
004786D8    81EE 04000000   sub esi,0x4								;原始esp-0x4
004786DE    8906            mov dword ptr ds:[esi],eax				;把eax存到原始esp中,此处两句指令对应 push eax
004786E6    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
004786E8    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
004786EE    33CB            xor ecx,ebx                             ;解密读取到的字节
0040AA81    49              dec ecx
0040AA82    D1C9            ror ecx,1
0040AA8C    F7D9            neg ecx
0040AA95    81C1 0C094E44   add ecx,0x444E090C
0040AA9C    0FC9            bswap ecx
0040AA9F    C1C9 02         ror ecx,0x2
0040AAAA    33D9            xor ebx,ecx								;更新滚动key
0040AAAC    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]			;edx=v_esp+0x60
0046263A    3BF2            cmp esi,edx								;原始esp与edx比较
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C					;如果原始esp>edx就正常返回,防止原始esp内容覆盖了vm_context
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]			;把原始esp上台0x80大小,然后把地址传给edx
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx								;把新的堆栈地址传给v_esp
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]    ;把原来v_esp的内容拷贝到新的v_esp
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn									;0x004343B9

vPop ebp(0x19FF2C)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
004343B9    8B0E            mov ecx,dword ptr ds:[esi]				;读取原始esp,ecx=保存了变量a的地址
004343BE    81C6 04000000   add esi,0x4								;原始esp+0x4, 此处两句指令对应 pop ecx
004343C4    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
004343C7    81C7 01000000   add edi,0x1								;跳过读取的字节
004343CD    32C3            xor al,bl								;解密读取到的字节
004343CF    04 95           add al,0x95
004343D1    F6D8            neg al
0040ACDA    FEC0            inc al
0040ACDE    34 28           xor al,0x28
0040ACEB    32D8            xor bl,al								;更新滚动key
0040ACEF    890C04          mov dword ptr ss:[esp+eax],ecx			;ecx=0x0019FF2C
0040ACF5    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
0040ACF8    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0040AD03    33CB            xor ecx,ebx
0047679A    C1C9 02         ror ecx,0x2
0047679D    81F1 7E7F9C09   xor ecx,0x99C7F7E
00448CC5    49              dec ecx
00448CC6    81F1 F25E4677   xor ecx,0x77465EF2
00448CCD    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
00448CD3    33D9            xor ebx,ecx								;更新滚动key
00448CDA    03E9            add ebp,ecx
00449A6E    55              push ebp
00449A6F    C3              retn									;0x0045225C

vPush ecx(0x0)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
0045225C    0FB60F          movzx ecx,byte ptr ds:[edi]				;读取opcode的第一个字节                                                 ; test1_vm.0043D0C3
00452265    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]			;跳过读取的字节
0045226B    32CB            xor cl,bl								;解密读取到的字节
0045226D    F6D9            neg cl
00452273    80F1 0E         xor cl,0xE
0045227D    80E9 21         sub cl,0x21
0045228B    F6D9            neg cl
0045228D    80F1 E2         xor cl,0xE2
00452292    32D9            xor bl,cl								;更新滚动key
00452297    8B140C          mov edx,dword ptr ss:[esp+ecx]			;从vm_stack读取数据
0045229A    81EE 04000000   sub esi,0x4
004522AE    8916            mov dword ptr ds:[esi],edx				;push edx
004522B0    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
004522B3    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
004522BE    33CB            xor ecx,ebx
0045676E    81E9 8C1F9123   sub ecx,0x23911F8C
00456776    D1C9            ror ecx,1
00463F87    49              dec ecx
00463F8C    F7D1            not ecx
0041EFFB    33D9            xor ebx,ecx								;更新滚动key
0041F001    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
00445778    3BF2            cmp esi,edx								;检查堆栈
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi                                                      ; test1_vm.0043D0C3
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax                                                ; test1_vm.0043D0C3
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi                                                       ; 0019FF2C                                                  ; test1_vm.0043D0C3
00458194    5F              pop edi                                                       ; 0019FF2C
0044BD0C    55              push ebp                                                      ; test1_vm.0045225C
0044BD0D    C3              retn									;0047E64B

vPush esp

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
0047E64B    0FB60F          movzx ecx,byte ptr ds:[edi]				;读取opcode的第一个字节
0047E65A    81C7 01000000   add edi,0x1								;跳过读取的字节
0047E661    32CB            xor cl,bl								;解密读取到的字节
0047E663    F6D9            neg cl
0047E66B    80F1 0E         xor cl,0xE
0047E670    80E9 21         sub cl,0x21
0047E673    80C2 96         add dl,0x96
0047E681    F6D9            neg cl
0047E683    80F1 E2         xor cl,0xE2
0047E686    32D9            xor bl,cl								;更新滚动key
0047E68E    8B140C          mov edx,dword ptr ss:[esp+ecx]
0047E697    81EE 04000000   sub esi,0x4
0047E6A2    8916            mov dword ptr ds:[esi],edx				;push edx
0047E6AC    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
0047E6B4    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
0047E6BF    33CB            xor ecx,ebx
0047E6C8    81E9 8C1F9123   sub ecx,0x23911F8C
0047E6CF    D1C9            ror ecx,1
0044CE2D    49              dec ecx
0044CE2E    F7D1            not ecx
0044CE30    33D9            xor ebx,ecx								;更新滚动key
0044CE33    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx								;堆栈检查
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn									;0x00454C04

vPush 1

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
00454C04    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
004131C1    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
004131C7    33CB            xor ecx,ebx                             ;解密读取到的字节
004131C9    41              inc ecx
004503B4    F7D9            neg ecx
00455A33    41              inc ecx
00455A34    81F1 66772375   xor ecx,0x75237766
00455A3B    33D9            xor ebx,ecx
00455A40    81EE 04000000   sub esi,0x4
00447C2B    890E            mov dword ptr ds:[esi],ecx				;push ecx
00447C35    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
00447C37    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
00447C41    33CB            xor ecx,ebx                             ;解密读取到的字节
00447C49    F7D9            neg ecx
0041448F    8D89 6233DE7C   lea ecx,dword ptr ds:[ecx+0x7CDE3362]
00414495    F7D9            neg ecx
00414497    F7D1            not ecx
00414499    33D9            xor ebx,ecx
0041449B    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx								;堆栈检查
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn										;0041043E

vPush ebp(0x0019FF2C)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
0041043E    0FB60F          movzx ecx,byte ptr ds:[edi]				;读取opcode的第一个字节
00410443    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]			;跳过读取的字节
0041044E    32CB            xor cl,bl								;解密读取到的字节
00410450    F6D9            neg cl
00410452    80F1 0E         xor cl,0xE
00410460    80E9 21         sub cl,0x21
0041046B    F6D9            neg cl
0041046D    D2D2            rcl dl,cl
0041046F    F6DE            neg dh
00410471    80F1 E2         xor cl,0xE2
00410479    32D9            xor bl,cl								;更新滚动key
0041047D    8B140C          mov edx,dword ptr ss:[esp+ecx]
00410480    81EE 04000000   sub esi,0x4
00410489    8916            mov dword ptr ds:[esi],edx				;push edx
00410497    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
0041049E    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]			;递增opcode,跳到下一个opcode
004104A4    33CB            xor ecx,ebx
004104A8    81E9 8C1F9123   sub ecx,0x23911F8C
004104B1    D1C9            ror ecx,1
004104B3    49              dec ecx
00440D59    F7D1            not ecx
00440D5C    33D9            xor ebx,ecx
004251B5    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx								;堆栈检查
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn						;0043E97B

vPush -4(0xFFFFFFFC)

变量a地址相对于ebp的相对偏移

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
0043E97B    8B0F            mov ecx,dword ptr ds:[edi]				;从opcode读取4字节
0044140D    81C7 04000000   add edi,0x4								;递增opcode,跳到下一个opcode
00441418    33CB            xor ecx,ebx
0047D18C    41              inc ecx
0047D18D    F7D9            neg ecx
00450AE0    41              inc ecx
00450AE1    81F1 66772375   xor ecx,0x75237766
00450AE7    33D9            xor ebx,ecx								;更新滚动key
00450AEA    8DB6 FCFFFFFF   lea esi,dword ptr ds:[esi-0x4]
00450AF2    890E            mov dword ptr ds:[esi],ecx				;push ecx
00450AF8    8B0F            mov ecx,dword ptr ds:[edi]
00450AFA    81C7 04000000   add edi,0x4
00450B07    33CB            xor ecx,ebx
00450B0C    F7D9            neg ecx
00450B0E    8D89 6233DE7C   lea ecx,dword ptr ds:[ecx+0x7CDE3362]
00450B17    F7D9            neg ecx
00450B19    F7D1            not ecx
00450B1B    33D9            xor ebx,ecx
00450B1E    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi
0045A32C    56              push esi
0045A32D    0FB7F2          movzx esi,dx
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C0    0BFB            or edi,ebx
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn								;0040423D
Text
1
2
3
4
mov eax,dword ptr ds:[v_esp]	;变量a地址相对于ebp的相对偏移
mov edx,dword ptr ds:[v_esp+0x4]
add eax,edx
mov dword ptr ds:[v_esp+0x4],eax

计算变量a的地址,ebp-4

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0040423D    8B06            mov eax,dword ptr ds:[esi]			;从原始esp读取变量a地址相对于edx的偏移
00404243    8B56 04         mov edx,dword ptr ds:[esi+0x4]		;从原始esp+4 读取ebp
00404248    03C2            add eax,edx							;相加后eax为变量a地址
0044AFE5    8946 04         mov dword ptr ds:[esi+0x4],eax		;eax压入原始esp+4 位置
0044AFED    9C              pushfd
0044AFEE    8F06            pop dword ptr ds:[esi]
0044AFF7    8B0F            mov ecx,dword ptr ds:[edi]
0044AFF9    81C7 04000000   add edi,0x4
0044B000    33CB            xor ecx,ebx
004056EF    C1C9 03         ror ecx,0x3
004056F6    F7D1            not ecx
004056F8    81C1 C448053F   add ecx,0x3F0548C4
00405701    81F1 2A55B526   xor ecx,0x26B5552A
00405707    81E9 864A0664   sub ecx,0x64064A86
00405710    33D9            xor ebx,ecx
00405718    03E9            add ebp,ecx
0040571A    55              push ebp
0040571B    C3              retn								;0046FF2C

vPop r12

将偏移弹到R12

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0046FF2C    8B0E            mov ecx,dword ptr ds:[esi]			;从原始esp读取变量a地址相对于edx的偏移
0046FF2E    8DB6 04000000   lea esi,dword ptr ds:[esi+0x4]		;原地esp+4,pop ecx
0046FF37    0FB607          movzx eax,byte ptr ds:[edi]			;读取opcode的第一个字节
0046FF3A    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]		;跳过读取的字节
0046FF48    32C3            xor al,bl							;解密读取到的字节
0046FF53    04 95           add al,0x95
00446B15    F6D8            neg al
00454B5C    FEC0            inc al
00454B61    34 28           xor al,0x28
00454B64    32D8            xor bl,al
00454B66    890C04          mov dword ptr ss:[esp+eax],ecx		;出栈
00454B6C    8B0F            mov ecx,dword ptr ds:[edi]
00454B72    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]
00454B7A    33CB            xor ecx,ebx
00454B7C    C1C9 02         ror ecx,0x2
00454B7F    81F1 7E7F9C09   xor ecx,0x99C7F7E
00422059    49              dec ecx
0042205D    81F1 F25E4677   xor ecx,0x77465EF2
00422065    8D89 1A29644A   lea ecx,dword ptr ds:[ecx+0x4A64291A]
0042206B    33D9            xor ebx,ecx
0042206D    03E9            add ebp,ecx
00409147   /FFE5            jmp ebp                             ;0041D673
Text
1
2
3
mov 	eax,dword ptr ds:[v_esp]	;变量a地址
mov	edx,dword ptr ds:[v_esp+0x4]	;之前vPush进来的1
mov	dword ptr ds:[eax],edx	;mov         dword ptr [ebp-4],1

mov dword ptr [ebp-4],1

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
0041D673    8B06            mov eax,dword ptr ds:[esi]			;变量a的地址
0041D67D    8B56 04         mov edx,dword ptr ds:[esi+0x4]		;之前vPush进来的1
0041D688    8DB6 08000000   lea esi,dword ptr ds:[esi+0x8]		;出栈
0046C3DB    36:8910         mov dword ptr ss:[eax],edx			;给变量a赋值,a=1
0046C3DE    8B07            mov eax,dword ptr ds:[edi]
0046C3E0    81C7 04000000   add edi,0x4
0046C3E6    33C3            xor eax,ebx
0041CA25    F7D0            not eax
0041CA28    8D80 39CAABFE   lea eax,dword ptr ds:[eax-0x15435C7]
0041CA31    35 CE111A71     xor eax,0x711A11CE
0041CA3B    8D80 03AE9DB8   lea eax,dword ptr ds:[eax-0x476251FD]
0041CA42    33D8            xor ebx,eax
0041CA45    03E8            add ebp,eax
00483D3B  ^\FFE5            jmp ebp            					;0045BC24

vPush -4(0xFFFFFFFC)

变量a地址相对于ebp的相对偏移

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
0045BC24    8B0F            mov ecx,dword ptr ds:[edi]						;从opcode读取4字节
0045BC2C    81C7 04000000   add edi,0x4										;递增opcode,跳到下一个opcode
0045BC33    33CB            xor ecx,ebx
0046BEC4    41              inc ecx
00431C1F    F7D9            neg ecx
00474669    41              inc ecx
00474672    81F1 66772375   xor ecx,0x75237766
00474678    33D9            xor ebx,ecx										;更新滚动key
0047467C    81EE 04000000   sub esi,0x4
00474684    890E            mov dword ptr ds:[esi],ecx						;push ecx
0047468B    8B0F            mov ecx,dword ptr ds:[edi]
0047468D    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]
00474695    33CB            xor ecx,ebx
00474697    F7D9            neg ecx
00474699    81C1 6233DE7C   add ecx,0x7CDE3362
0047469F    F7D9            neg ecx
0043D8C9    F7D1            not ecx
0043D8CB    33D9            xor ebx,ecx
00488CC8    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx												;堆栈检查
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn						;00435011
Text
1
2
3
4
mov	eax,dword ptr ds:[v_esp]	;变量a地址相对于ebp的相对偏移
mov	edx,dword ptr ds:[v_esp+0x4]
add	eax,edx
mov	dword ptr ds:[v_esp+0x4],eax

计算变量a的地址,ebp-4

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
00435011    8B06            mov eax,dword ptr ds:[esi]				;从原始esp获取变量a地址相对于ebp的相对偏移
0043501B    8B56 04         mov edx,dword ptr ds:[esi+0x4]			;从原始esp+4,获取ebp
00435023    03C2            add eax,edx								;相加得到变量a的地址
00435028    8946 04         mov dword ptr ds:[esi+0x4],eax			;入栈
00435034    9C              pushfd
0043503B    8F06            pop dword ptr ds:[esi]                 	;保存ELF到vm_stack栈顶
00435043    8B0F            mov ecx,dword ptr ds:[edi]
00435047    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]
00435055    33CB            xor ecx,ebx
00435057    C1C9 03         ror ecx,0x3
0043505A    F7D1            not ecx
0043505D    81C1 C448053F   add ecx,0x3F0548C4
00435065    81F1 2A55B526   xor ecx,0x26B5552A
00435070    8D89 7AB5F99B   lea ecx,dword ptr ds:[ecx-0x64064A86]
0043507D    33D9            xor ebx,ecx
00435082    03E9            add ebp,ecx
0046DD9A  ^\FFE5            jmp ebp          						;0x00453841

vPop r11

将偏移弹出

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
00453841    8B0E            mov ecx,dword ptr ds:[esi]				;从原始esp读取数据
00453846    81C6 04000000   add esi,0x4
00453854    0FB607          movzx eax,byte ptr ds:[edi]				;读取opcode的第一个字节
00453857    81C7 01000000   add edi,0x1								;跳过读取的字节
00453866    32C3            xor al,bl								;解密读取到的字节
0045386E    04 95           add al,0x95
00453870    F6D8            neg al
00458E65    FEC0            inc al
00458E6B    34 28           xor al,0x28
00458E6D    32D8            xor bl,al
00458E6F    890C04          mov dword ptr ss:[esp+eax],ecx
00458E7C    8B0F            mov ecx,dword ptr ds:[edi]
00479B0C    81C7 04000000   add edi,0x4
0041B623    33CB            xor ecx,ebx                                                   ; test1_vm.00439ED8
00470224    C1C9 02         ror ecx,0x2
00470227    81F1 7E7F9C09   xor ecx,0x99C7F7E
004452FB    49              dec ecx
004452FC    81F1 F25E4677   xor ecx,0x77465EF2
00445305    81C1 1A29644A   add ecx,0x4A64291A
0044530B    33D9            xor ebx,ecx
0044530D    03E9            add ebp,ecx
0043AD66    55              push ebp                                                      ; test1_vm.00453841
0043AD67    C3              retn						;00463862
Text
1
2
3
mov	edx,dword ptr ds:[esi]
mov	eax,dword ptr ss:[edx]
mov	dword ptr ds:[v_esp],eax	;将变量a的值覆盖到esp

把变量a的值存放栈顶

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
00463862    8B16            mov edx,dword ptr ds:[esi]			;从原始esp读取变量a的地址
0046386C    36:8B02         mov eax,dword ptr ss:[edx]			;读取变量a的内容
0046C75B    8906            mov dword ptr ds:[esi],eax			;把内容覆盖到变量a的地址
0046C762    8B07            mov eax,dword ptr ds:[edi]			;从opcode读取4字节
00481FFA    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]
00482003    33C3            xor eax,ebx
0048200B    05 84307C17     add eax,0x177C3084
00444EE2    0FC8            bswap eax
00444EE4    40              inc eax
00444EE7    F7D0            not eax
00444EE9    33D8            xor ebx,eax
00444EEB    03E8            add ebp,eax
00442693    55              push ebp
00442694    C3              retn								;00430521
Text
1
2
将变量a的值弹到寄存器R15中,联合上面几句等价于
mov         eax,dword ptr [ebp-4]

vPop r15

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
00430521    8B0E            mov ecx,dword ptr ds:[esi]			;取出变量a的值
00430523    81C6 04000000   add esi,0x4
00430529    0FB607          movzx eax,byte ptr ds:[edi]
004552EE    81C7 01000000   add edi,0x1
004552F4    32C3            xor al,bl
004552F9    04 95           add al,0x95
004552FB    F6D8            neg al
004552FD    FEC0            inc al
00455303    34 28           xor al,0x28
00455309    32D8            xor bl,al
0045530C    890C04          mov dword ptr ss:[esp+eax],ecx
00455311    8B0F            mov ecx,dword ptr ds:[edi]
00455313    81C7 04000000   add edi,0x4
0045531F    33CB            xor ecx,ebx
00455324    C1C9 02         ror ecx,0x2
0045532B    81F1 7E7F9C09   xor ecx,0x99C7F7E
00455331    49              dec ecx
00455332    81F1 F25E4677   xor ecx,0x77465EF2
00455339    81C1 1A29644A   add ecx,0x4A64291A
00455345    33D9            xor ebx,ecx
00455347    03E9            add ebp,ecx
004781EB  ^\FFE5            jmp ebp                              ;004693CB

vPush 1

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
004693CB    8B0F            mov ecx,dword ptr ds:[edi]					;获取1
004693D3    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]
0046E6FE    33CB            xor ecx,ebx
00443D5F    41              inc ecx
00443D61    F7D9            neg ecx
004141FF    41              inc ecx
00414206    81F1 66772375   xor ecx,0x75237766
0041420C    33D9            xor ebx,ecx
0041420E    81EE 04000000   sub esi,0x4
00414214    890E            mov dword ptr ds:[esi],ecx        			;push
00414221    8B0F            mov ecx,dword ptr ds:[edi]
0047C17B    81C7 04000000   add edi,0x4
0047C181    33CB            xor ecx,ebx
0042DAB1    F7D9            neg ecx
0042DABC    81C1 6233DE7C   add ecx,0x7CDE3362
0042DAC4    F7D9            neg ecx
0042DAC8    F7D1            not ecx
0042DACB    33D9            xor ebx,ecx
0042DACD    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi
0045A32C    56              push esi
0045A32D    0FB7F2          movzx esi,dx
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn			;0x00421D3D

取出R15寄存器的值,然后压栈

vPush 15

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
00421D3D    0FB60F          movzx ecx,byte ptr ds:[edi]				;opcode获取一字节
00421D43    8DBF 01000000   lea edi,dword ptr ds:[edi+0x1]
00421D49    32CB            xor cl,bl
00421D55    F6D9            neg cl
00421D5B    80F1 0E         xor cl,0xE
00421D64    80E9 21         sub cl,0x21
00421D6D    F6D9            neg cl
00421D72    80F1 E2         xor cl,0xE2
00421D78    32D9            xor bl,cl
00421D81    8B140C          mov edx,dword ptr ss:[esp+ecx]			;获取R15寄存器的值
00421D87    8DB6 FCFFFFFF   lea esi,dword ptr ds:[esi-0x4]
00421D95    8916            mov dword ptr ds:[esi],edx				push edx
00421D9D    8B0F            mov ecx,dword ptr ds:[edi]
00455281    8DBF 04000000   lea edi,dword ptr ds:[edi+0x4]
00455289    33CB            xor ecx,ebx
0045528E    81E9 8C1F9123   sub ecx,0x23911F8C
00455294    D1C9            ror ecx,1
0043425D    49              dec ecx
00434263    F7D1            not ecx
00434267    33D9            xor ebx,ecx
00434269    81FC 1B356876   cmp esp,0x7668351B
0043426F    03E9            add ebp,ecx
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2            cmp esi,edx
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C
00481408    8BC4            mov eax,esp
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx
0046734B    57              push edi                                                      ; test1_vm.0043D111
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn	;0x004616C3
Text
1
2
vAdd	dword ptr ds:[v_esp+0x4],R15	;add         eax,1
mov	dword ptr ds:[v_esp],EFL

vAdd dword ptr ds:[v_esp+0x4],R15

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
004616C3    8B06             mov eax,dword ptr ds:[esi]					;读取R15
004616CC    8B56 04          mov edx,dword ptr ds:[esi+0x4]				;读取数值1
004616D6    03C2             add eax,edx								;相加
004616E0    8946 04          mov dword ptr ds:[esi+0x4],eax				;将结果压入原始esp+4
004616E6    9C               pushfd
004616E8    8F06             pop dword ptr ds:[esi]              		;然后将efl写入到原始esp
004616F1    8B0F             mov ecx,dword ptr ds:[edi]
00428439    81C7 04000000    add edi,0x4
00428446    33CB             xor ecx,ebx
00428448    C1C9 03          ror ecx,0x3
004810BD    F7D1             not ecx
004810BF    8D89 C448053F    lea ecx,dword ptr ds:[ecx+0x3F0548C4]
004810C5    81F1 2A55B526    xor ecx,0x26B5552A
004810D0    8D89 7AB5F99B    lea ecx,dword ptr ds:[ecx-0x64064A86]
004810D6    33D9             xor ebx,ecx
004810E0    03E9             add ebp,ecx
0040F74A   /FFE5             jmp ebp   ;0x0043BD4C

把保存的EFL弹到R7

vPop r7

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0043BD4C    8B0E             mov ecx,dword ptr ds:[esi]				;从v_stack栈顶取出保存的efl
0043BD5B    0FB607           movzx eax,byte ptr ds:[edi]			;读取一字节的opcode
0043BD66    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0043BD72    32C3             xor al,bl
0043BD74    04 95            add al,0x95
0043BD7A    F6D8             neg al
00479730    FEC0             inc al
00424206    34 28            xor al,0x28
00424208    32D8             xor bl,al
0042420C    890C04           mov dword ptr ss:[esp+eax],ecx			;push ecx
0042420F    8B0F             mov ecx,dword ptr ds:[edi]
00424211    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
00424217    33CB             xor ecx,ebx
0043796F    C1C9 02          ror ecx,0x2
0041F44A    81F1 7E7F9C09    xor ecx,0x99C7F7E
004104C7    49               dec ecx
004104C8    81F1 F25E4677    xor ecx,0x77465EF2
004104CE    8D89 1A29644A    lea ecx,dword ptr ds:[ecx+0x4A64291A]
004104D5    33D9             xor ebx,ecx
004104D7    03E9             add ebp,ecx
004536AD    55               push ebp
004536AE    C3               retn	;0x0045E179

vPop r4

把上面vAdd的结果弹到R4

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0045E179    8B0E             mov ecx,dword ptr ds:[esi]				;从v_stack栈顶取出保存的efl
0045E181    8DB6 04000000    lea esi,dword ptr ds:[esi+0x4]
0045E187    0FB607           movzx eax,byte ptr ds:[edi]			;读取一字节的opcode
0045E18A    81C7 01000000    add edi,0x1
0045E193    32C3             xor al,bl
0045E197    04 95            add al,0x95
0045E199    F6D8             neg al
0047C824    FEC0             inc al
00459FC2    34 28            xor al,0x28
00459FC8    32D8             xor bl,al
00459FCC    890C04           mov dword ptr ss:[esp+eax],ecx			;pop
00459FCF    8B0F             mov ecx,dword ptr ds:[edi]
00459FD1    81C7 04000000    add edi,0x4
00459FD7    33CB             xor ecx,ebx
00459FD9    C1C9 02          ror ecx,0x2
00459FDC    81F1 7E7F9C09    xor ecx,0x99C7F7E
00459FE2    49               dec ecx
00459FE3    81F1 F25E4677    xor ecx,0x77465EF2
00459FEE    81C1 1A29644A    add ecx,0x4A64291A
00459FF4    33D9             xor ebx,ecx
00459FF6    03E9             add ebp,ecx
00479CA7  ^\FFE5             jmp ebp        	;0x0040EB2E

vPush r4

R4入栈

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
0040EB2E    0FB60F           movzx ecx,byte ptr ds:[edi]		;读取一字节的opcode
0040EB37    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0040EB40    32CB             xor cl,bl
0040EB4F    F6D9             neg cl
0040EB51    80F1 0E          xor cl,0xE
0040EB5B    80E9 21          sub cl,0x21
0040EB68    F6D9             neg cl
0040EB6E    80F1 E2          xor cl,0xE2
0040EB76    32D9             xor bl,cl
00440ED1    8B140C           mov edx,dword ptr ss:[esp+ecx]		;
00440ED8    81EE 04000000    sub esi,0x4
00440EDE    8916             mov dword ptr ds:[esi],edx			;
00440EE0    8B0F             mov ecx,dword ptr ds:[edi]
0041D911    81C7 04000000    add edi,0x4
0041D91A    33CB             xor ecx,ebx
0042EDBF    81E9 8C1F9123    sub ecx,0x23911F8C
0042AD19    D1C9             ror ecx,1
0042AD1B    49               dec ecx
0042AD1C    F7D1             not ecx
0042AD1E    33D9             xor ebx,ecx
004526DB    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]                                                 ; test1_vm.00412728
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                  ; test1_vm.0043D124
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x004184B3

vPush R0(0x0019FF2C)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
004184B3    0FB60F           movzx ecx,byte ptr ds:[edi]
004184C1    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
004184C7    32CB             xor cl,bl
004184CB    F6D9             neg cl
004184D4    80F1 0E          xor cl,0xE
004184DC    80E9 21          sub cl,0x21
004184DF    F6D9             neg cl
004184E1    80F1 E2          xor cl,0xE2
004184E6    32D9             xor bl,cl
004184E8    8B140C           mov edx,dword ptr ss:[esp+ecx]
004184F0    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
00418501    8916             mov dword ptr ds:[esi],edx
00418503    8B0F             mov ecx,dword ptr ds:[edi]
0041850A    81C7 04000000    add edi,0x4
00418510    33CB             xor ecx,ebx
00418516    81E9 8C1F9123    sub ecx,0x23911F8C
004402C4    D1C9             ror ecx,1
004178C0    49               dec ecx
0044E1FF    F7D1             not ecx
0044E204    33D9             xor ebx,ecx
0044E20A    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x004394F5

vPush -4(0xFFFFFFFC)

变量a地址相对于ebp的相对偏移

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
004394F5    8B0F             mov ecx,dword ptr ds:[edi]
004394F7    81C7 04000000    add edi,0x4
00439503    33CB             xor ecx,ebx
0043B90E    41               inc ecx
0043B912    F7D9             neg ecx
00446A07    41               inc ecx
00446A11    81F1 66772375    xor ecx,0x75237766
00446A1B    33D9             xor ebx,ecx
00446A21    81EE 04000000    sub esi,0x4
00446A30    890E             mov dword ptr ds:[esi],ecx
00446A38    8B0F             mov ecx,dword ptr ds:[edi]
00446A40    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0043C79B    33CB             xor ecx,ebx
0045F6AB    F7D9             neg ecx
0045F6AE    8D89 6233DE7C    lea ecx,dword ptr ds:[ecx+0x7CDE3362]
004538B9    F7D9             neg ecx
004538BB    F7D1             not ecx
004538BD    33D9             xor ebx,ecx
004538C4    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0046389F
Text
1
2
3
4
5
mov	eax,dword ptr ds:[v_esp]	;变量a地址相对于ebp的相对偏移
mov	edx,dword ptr ds:[v_esp+0x4]
add 	eax,edx
mov 	dword ptr ds:[v_esp+0x4],eax
mov 	dword ptr ds:[v_esp],efl

计算变量a的地址,ebp-4

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0046389F    8B06             mov eax,dword ptr ds:[esi]
004638A4    8B56 04          mov edx,dword ptr ds:[esi+0x4]
004638AE    03C2             add eax,edx
004638B0    8946 04          mov dword ptr ds:[esi+0x4],eax
004638B3    9C               pushfd
004638B9    8F06             pop dword ptr ds:[esi]
004638BB    8B0F             mov ecx,dword ptr ds:[edi]
004638BD    81C7 04000000    add edi,0x4
004638CA    33CB             xor ecx,ebx
004638CE    C1C9 03          ror ecx,0x3
004638D8    F7D1             not ecx
004638E1    8D89 C448053F    lea ecx,dword ptr ds:[ecx+0x3F0548C4]
004638E9    81F1 2A55B526    xor ecx,0x26B5552A
004638EF    8D89 7AB5F99B    lea ecx,dword ptr ds:[ecx-0x64064A86]
004638F5    33D9             xor ebx,ecx
004638F8    03E9             add ebp,ecx
0045D98A    55               push ebp
0045D98B    C3               retn		;0x0046D3FB

vPop r12

将EFL弹出堆栈

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0046D3FB    8B0E             mov ecx,dword ptr ds:[esi]
0046D3FD    81C6 04000000    add esi,0x4
0046D403    0FB607           movzx eax,byte ptr ds:[edi]
0046D407    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0046D413    32C3             xor al,bl
0046D415    04 95            add al,0x95
0046D41B    F6D8             neg al
004264F7    FEC0             inc al
004264F9    34 28            xor al,0x28
004264FC    32D8             xor bl,al
00426500    890C04           mov dword ptr ss:[esp+eax],ecx
00426503    8B0F             mov ecx,dword ptr ds:[edi]
00426508    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0042650F    33CB             xor ecx,ebx
00426512    C1C9 02          ror ecx,0x2
0047CDC0    81F1 7E7F9C09    xor ecx,0x99C7F7E
00483DE1    49               dec ecx
00483DE8    81F1 F25E4677    xor ecx,0x77465EF2
00483DF9    8D89 1A29644A    lea ecx,dword ptr ds:[ecx+0x4A64291A]
00483E02    33D9             xor ebx,ecx
00483E0B    03E9             add ebp,ecx
0047FFF9  ^\FFE5             jmp ebp        ;0x00452B62
Text
1
2
3
mov 	eax,dword ptr ds:[v_esp]	;变量a地址
mov	edx,dword ptr ds:[v_esp+0x4]	;之前vPush进来的eax
mov	dword ptr ds:[eax],edx	;mov         dword ptr [ebp-4],eax

把计算的结果存回变量a

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
00452B62    8B06             mov eax,dword ptr ds:[esi]				;变量a的地址
00452B6B    8B56 04          mov edx,dword ptr ds:[esi+0x4]			;a的值
00452B71    8DB6 08000000    lea esi,dword ptr ds:[esi+0x8]
00452B7E    36:8910          mov dword ptr ss:[eax],edx
00452B88    8B07             mov eax,dword ptr ds:[edi]
00452B8D    81C7 04000000    add edi,0x4
00452B96    33C3             xor eax,ebx
00452B9C    F7D0             not eax
00452BA3    8D80 39CAABFE    lea eax,dword ptr ds:[eax-0x15435C7]
00452BA9    35 CE111A71      xor eax,0x711A11CE
00452BB3    8D80 03AE9DB8    lea eax,dword ptr ds:[eax-0x476251FD]
00452BB9    33D8             xor ebx,eax
00452BBC    03E8             add ebp,eax
0040AABF    55               push ebp
0040AAC0    C3               retn	;0x004494C2

vPush R0(0x0019FF2C)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
004494C2    0FB60F           movzx ecx,byte ptr ds:[edi]
004494CC    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
004494DA    32CB             xor cl,bl
004494DC    F6D9             neg cl
004494DF    80F1 0E          xor cl,0xE
004494E8    80E9 21          sub cl,0x21
004494EB    F6D9             neg cl
004494F4    80F1 E2          xor cl,0xE2
004494FD    32D9             xor bl,cl
00449503    8B140C           mov edx,dword ptr ss:[esp+ecx]
0044950A    81EE 04000000    sub esi,0x4
00449511    8916             mov dword ptr ds:[esi],edx
00449516    8B0F             mov ecx,dword ptr ds:[edi]
00449518    81C7 04000000    add edi,0x4
0042DC24    33CB             xor ecx,ebx
0042DC27    81E9 8C1F9123    sub ecx,0x23911F8C
0042DC30    D1C9             ror ecx,1
0043242E    49               dec ecx
00432430    F7D1             not ecx
00432433    33D9             xor ebx,ecx
00432436    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0044A08D

vPush -4(0xFFFFFFFC)

变量a地址相对于ebp的相对偏移

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
0044A08D    8B0F             mov ecx,dword ptr ds:[edi]
0044A08F    81C7 04000000    add edi,0x4
0041917F    33CB             xor ecx,ebx
00477182    41               inc ecx
0041182A    F7D9             neg ecx
0041996A    41               inc ecx
0041996B    81F1 66772375    xor ecx,0x75237766
00419972    33D9             xor ebx,ecx
00419979    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
0041997F    890E             mov dword ptr ds:[esi],ecx
00419981    8B0F             mov ecx,dword ptr ds:[edi]
00419987    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0044414F    33CB             xor ecx,ebx
00444154    F7D9             neg ecx
00444159    8D89 6233DE7C    lea ecx,dword ptr ds:[ecx+0x7CDE3362]
004774CA    F7D9             neg ecx
004774CD    F7D1             not ecx
004774D0    33D9             xor ebx,ecx
004774D3    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                     ; test1_vm.0043D148
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0042A0F0
Text
1
2
3
4
5
mov	eax,dword ptr ds:[v_esp]	;变量a地址相对于ebp的相对偏移
mov	edx,dword ptr ds:[v_esp+0x4]
add 	eax,edx
mov 	dword ptr ds:[v_esp+0x4],eax
mov 	dword ptr ds:[v_esp],efl

计算变量a的地址,ebp-4

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0042A0F0    8B06             mov eax,dword ptr ds:[esi]
0042A0FD    8B56 04          mov edx,dword ptr ds:[esi+0x4]
0042A105    03C2             add eax,edx
0042A107    8946 04          mov dword ptr ds:[esi+0x4],eax
0042A10D    9C               pushfd
0042A112    8F06             pop dword ptr ds:[esi]
0042A11B    8B0F             mov ecx,dword ptr ds:[edi]
0042A11D    81C7 04000000    add edi,0x4
0042A129    33CB             xor ecx,ebx
004670D9    C1C9 03          ror ecx,0x3
0041C461    F7D1             not ecx
0041C468    8D89 C448053F    lea ecx,dword ptr ds:[ecx+0x3F0548C4]
0041C46E    81F1 2A55B526    xor ecx,0x26B5552A
0041C474    81E9 864A0664    sub ecx,0x64064A86
0041C482    33D9             xor ebx,ecx
0044C712    03E9             add ebp,ecx
0045ACDE    55               push ebp
0045ACDF    C3               retn				;0x0046C4CB

vPop r15

将EFL弹出

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
0046C4CB    8B0E             mov ecx,dword ptr ds:[esi]
0046C4CD    8DB6 04000000    lea esi,dword ptr ds:[esi+0x4]
0046C4D7    0FB607           movzx eax,byte ptr ds:[edi]
0046C4E3    32C3             xor al,bl
0046C4EA    04 95            add al,0x95
00445326    F6D8             neg al
00445328    FEC0             inc al
0044532B    34 28            xor al,0x28
00445332    32D8             xor bl,al
00445334    890C04           mov dword ptr ss:[esp+eax],ecx
0044533F    8B0F             mov ecx,dword ptr ds:[edi]
00445346    81C7 04000000    add edi,0x4
0044534C    33CB             xor ecx,ebx
0044534E    C1C9 02          ror ecx,0x2
00445351    81F1 7E7F9C09    xor ecx,0x99C7F7E
00478CFC    49               dec ecx
00478CFD    81F1 F25E4677    xor ecx,0x77465EF2
0046EDD9    81C1 1A29644A    add ecx,0x4A64291A
0046EDE5    33D9             xor ebx,ecx
0046EDEA    03E9             add ebp,ecx
0043713E    55               push ebp
0043713F    C3               retn		;0x00437854
Text
1
2
3
mov 	eax,dword ptr ds:[v_esp]	;变量a地址
mov	edx,dword ptr ds:[eax]	;
mov	dword ptr ds:[v_esp],edx

把变量a的值存放栈顶

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
00437854    8B16             mov edx,dword ptr ds:[esi]
00437858    36:8B02          mov eax,dword ptr ss:[edx]
0043785C    8906             mov dword ptr ds:[esi],eax		;把变量a的值读出来后存放值v_stack栈顶
00437863    8B07             mov eax,dword ptr ds:[edi]
00437865    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0043786D    33C3             xor eax,ebx
0043786F    05 84307C17      add eax,0x177C3084
00480A5B    0FC8             bswap eax
0041D7F7    40               inc eax
0041D7FC    F7D0             not eax
0041D7FE    33D8             xor ebx,eax
0041D803    03E8             add ebp,eax
0042FA74    55               push ebp
0042FA75    C3               retn	;0x00474E9C

vPop r12

将变量a的值保存到寄存器R12,相当于mov ecx,dword ptr [ebp-4]

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
00474E9C    8B0E             mov ecx,dword ptr ds:[esi]
00474EA0    81C6 04000000    add esi,0x4
00474EAB    0FB607           movzx eax,byte ptr ds:[edi]
00474EAE    81C7 01000000    add edi,0x1
00474EB6    32C3             xor al,bl
00445C08    04 95            add al,0x95
00445C0B    F6D8             neg al
00483885    FEC0             inc al
00483887    34 28            xor al,0x28
0048388A    32D8             xor bl,al
00483890    890C04           mov dword ptr ss:[esp+eax],ecx
00483895    8B0F             mov ecx,dword ptr ds:[edi]
004376C4    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
004745C8    33CB             xor ecx,ebx
0044E82C    C1C9 02          ror ecx,0x2
0044E82F    81F1 7E7F9C09    xor ecx,0x99C7F7E
004072B5    81F1 F25E4677    xor ecx,0x77465EF2
004072BB    81C1 1A29644A    add ecx,0x4A64291A
004072C5    33D9             xor ebx,ecx
004072C9    03E9             add ebp,ecx
00471DC6    55               push ebp
00471DC7    C3               retn	;0x00405372

vPush R12

push ecx

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
00405372    0FB60F           movzx ecx,byte ptr ds:[edi]
0040537B    81C7 01000000    add edi,0x1
00405384    32CB             xor cl,bl
00405389    F6D9             neg cl
0040538D    80F1 0E          xor cl,0xE
00405393    80E9 21          sub cl,0x21
00405396    F6D9             neg cl
004053A0    80F1 E2          xor cl,0xE2
004053A8    32D9             xor bl,cl
004053B1    8B140C           mov edx,dword ptr ss:[esp+ecx]
004053B9    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
004053C4    8916             mov dword ptr ds:[esi],edx
004053C9    8B0F             mov ecx,dword ptr ds:[edi]
00474617    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
00474622    33CB             xor ecx,ebx
0047462F    81E9 8C1F9123    sub ecx,0x23911F8C
00474636    D1C9             ror ecx,1
004863EB    49               dec ecx
00435EA6    F7D1             not ecx
00435EAE    33D9             xor ebx,ecx
00435EB8    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                 ; test1_vm.0043D162
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn			//0x004357B8

vPush 4020FCh

push “%d\n”

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
004357B8    8B0F             mov ecx,dword ptr ds:[edi]
004357BD    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
004357C5    33CB             xor ecx,ebx
004357D0    F7D9             neg ecx
004357D2    41               inc ecx
004357D5    81F1 66772375    xor ecx,0x75237766
004357E1    33D9             xor ebx,ecx
004357E3    81EE 04000000    sub esi,0x4
004357EA    890E             mov dword ptr ds:[esi],ecx
004357EC    8B0F             mov ecx,dword ptr ds:[edi]
004357EE    81C7 04000000    add edi,0x4
004357F8    33CB             xor ecx,ebx
004357FA    F7D9             neg ecx
00435802    8D89 6233DE7C    lea ecx,dword ptr ds:[ecx+0x7CDE3362]
0043580F    F7D1             not ecx
0043581A    33D9             xor ebx,ecx
0043581C    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                           ; test1_vm.0043D167
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn			;0x0043AA20

vPush VMEntry

重新进入虚拟机的入口,也就是printf执行完毕后的返回地址

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
0043AA20    8B0F             mov ecx,dword ptr ds:[edi]
0043AA26    81C7 04000000    add edi,0x4
0043AA2E    33CB             xor ecx,ebx
0047C322    F7D9             neg ecx
0047C324    41               inc ecx
0047C32B    81F1 66772375    xor ecx,0x75237766
0042C668    33D9             xor ebx,ecx
0042C66B    81EE 04000000    sub esi,0x4
0042C674    890E             mov dword ptr ds:[esi],ecx
0042C67F    8B0F             mov ecx,dword ptr ds:[edi]
0042C687    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0042C699    33CB             xor ecx,ebx
0045ED4D    F7D9             neg ecx
0045ED4F    8D89 6233DE7C    lea ecx,dword ptr ds:[ecx+0x7CDE3362]
0045ED55    F7D9             neg ecx
0045ED5D    F7D1             not ecx
0045ED60    33D9             xor ebx,ecx
00446EEF    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                            ; test1_vm.0043D16F
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0044A38D

vPush printf

将printf函数地址压入栈

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
0044A38D    8B0F             mov ecx,dword ptr ds:[edi]
0044A38F    81C7 04000000    add edi,0x4
0044A395    33CB             xor ecx,ebx
00441810    41               inc ecx
00441816    F7D9             neg ecx
0041C24A    41               inc ecx
0041C250    81F1 66772375    xor ecx,0x75237766
0041C259    33D9             xor ebx,ecx
0041C260    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
0041C26A    890E             mov dword ptr ds:[esi],ecx
0041C270    8B0F             mov ecx,dword ptr ds:[edi]
0041C273    81C7 04000000    add edi,0x4
0041C279    33CB             xor ecx,ebx
0041C27B    F7D9             neg ecx
0041C286    8D89 6233DE7C    lea ecx,dword ptr ds:[ecx+0x7CDE3362]
0041C28C    F7D9             neg ecx
00435617    F7D1             not ecx
0043561B    33D9             xor ebx,ecx
00435622    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                ; test1_vm.0043D177
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn			;0x004126A8

vPush R4(2)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
004126A8    0FB60F           movzx ecx,byte ptr ds:[edi]
004126B4    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
004126C0    32CB             xor cl,bl
004126C4    F6D9             neg cl
004126CD    80F1 0E          xor cl,0xE
004126D3    80E9 21          sub cl,0x21
004126DF    F6D9             neg cl
004126E1    80F1 E2          xor cl,0xE2
004126E4    32D9             xor bl,cl
004126E6    8B140C           mov edx,dword ptr ss:[esp+ecx]
004126F0    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
004126F6    8916             mov dword ptr ds:[esi],edx
004126FE    8B0F             mov ecx,dword ptr ds:[edi]
00412702    81C7 04000000    add edi,0x4
0041270D    33CB             xor ecx,ebx
00412718    81E9 8C1F9123    sub ecx,0x23911F8C
0041271F    D1C9             ror ecx,1
00412721    49               dec ecx
00489F7A    F7D1             not ecx
00445362    33D9             xor ebx,ecx
00445369    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                     ; test1_vm.0043D17F
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0047B785

vPush R5(2)

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
0047B785    0FB60F           movzx ecx,byte ptr ds:[edi]
0047B790    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0047B79E    32CB             xor cl,bl
0047B7AA    F6D9             neg cl
0047B7AC    80F1 0E          xor cl,0xE
0047B7B3    80E9 21          sub cl,0x21
0040EEF9    F6D9             neg cl
0040EEFE    80F1 E2          xor cl,0xE2
0040EF01    32D9             xor bl,cl
0040EF07    8B140C           mov edx,dword ptr ss:[esp+ecx]
0040EF0D    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
0040EF17    8916             mov dword ptr ds:[esi],edx
0040EF20    8B0F             mov ecx,dword ptr ds:[edi]
0040EF22    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0040EF28    33CB             xor ecx,ebx
0040EF2A    81E9 8C1F9123    sub ecx,0x23911F8C
0040EF32    D1C9             ror ecx,1
00430F23    49               dec ecx
00430F29    F7D1             not ecx
00430F2B    33D9             xor ebx,ecx
00430F2E    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0045325C

vPush

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
0045325C    0FB60F           movzx ecx,byte ptr ds:[edi]
00453267    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0045326D    32CB             xor cl,bl
0045326F    F6D9             neg cl
00453272    80F1 0E          xor cl,0xE
00453278    80E9 21          sub cl,0x21
00453282    F6D9             neg cl
0045328E    80F1 E2          xor cl,0xE2
00453291    80EA 48          sub dl,0x48
00453296    32D9             xor bl,cl
004532A5    8B140C           mov edx,dword ptr ss:[esp+ecx]
004532A8    81EE 04000000    sub esi,0x4
004532B4    8916             mov dword ptr ds:[esi],edx
004532BD    8B0F             mov ecx,dword ptr ds:[edi]
004532C4    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
0041B011    33CB             xor ecx,ebx
0041B018    81E9 8C1F9123    sub ecx,0x23911F8C
0041B01E    D1C9             ror ecx,1
004692ED    49               dec ecx
004692F3    F7D1             not ecx
004692FA    33D9             xor ebx,ecx
004692FC    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                              ; test1_vm.0043D189
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0045225C

vPush

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
0045225C    0FB60F           movzx ecx,byte ptr ds:[edi]
00452265    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0045226B    32CB             xor cl,bl
0045226D    F6D9             neg cl
00452273    80F1 0E          xor cl,0xE
0045227D    80E9 21          sub cl,0x21
0045228B    F6D9             neg cl
0045228D    80F1 E2          xor cl,0xE2
00452292    32D9             xor bl,cl
00452297    8B140C           mov edx,dword ptr ss:[esp+ecx]
0045229A    81EE 04000000    sub esi,0x4
004522AE    8916             mov dword ptr ds:[esi],edx
004522B0    8B0F             mov ecx,dword ptr ds:[edi]
004522B3    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
004522BE    33CB             xor ecx,ebx
0045676E    81E9 8C1F9123    sub ecx,0x23911F8C
00456776    D1C9             ror ecx,1
00463F87    49               dec ecx
00463F8C    F7D1             not ecx
0041EFFB    33D9             xor ebx,ecx
0041F001    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn		;0x0047E64B

vPush

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
0047E64B    0FB60F           movzx ecx,byte ptr ds:[edi]
0047E661    32CB             xor cl,bl
0047E663    F6D9             neg cl
0047E66B    80F1 0E          xor cl,0xE
0047E670    80E9 21          sub cl,0x21
0047E681    F6D9             neg cl
0047E683    80F1 E2          xor cl,0xE2
0047E686    32D9             xor bl,cl
0047E68E    8B140C           mov edx,dword ptr ss:[esp+ecx]
0047E697    81EE 04000000    sub esi,0x4
0047E6A2    8916             mov dword ptr ds:[esi],edx
0047E6AC    8B0F             mov ecx,dword ptr ds:[edi]
0047E6B4    81C7 04000000    add edi,0x4
0047E6BA    66:81FE 6D64     cmp si,0x646D
0047E6BF    33CB             xor ecx,ebx
0047E6C8    81E9 8C1F9123    sub ecx,0x23911F8C
0047E6CF    D1C9             ror ecx,1
0044CE2D    49               dec ecx
0044CE2E    F7D1             not ecx
0044CE30    33D9             xor ebx,ecx
0044CE33    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0041043E

vPush

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
0041043E    0FB60F           movzx ecx,byte ptr ds:[edi]
00410443    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0041044E    32CB             xor cl,bl
00410450    F6D9             neg cl
00410452    80F1 0E          xor cl,0xE
00410460    80E9 21          sub cl,0x21
0041046B    F6D9             neg cl
00410471    80F1 E2          xor cl,0xE2
00410479    32D9             xor bl,cl
0041047D    8B140C           mov edx,dword ptr ss:[esp+ecx]
00410480    81EE 04000000    sub esi,0x4
00410489    8916             mov dword ptr ds:[esi],edx
00410497    8B0F             mov ecx,dword ptr ds:[edi]
0041049E    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
004104A4    33CB             xor ecx,ebx
004104A8    81E9 8C1F9123    sub ecx,0x23911F8C
004104B1    D1C9             ror ecx,1
004104B3    49               dec ecx
00440D59    F7D1             not ecx
00440D5C    33D9             xor ebx,ecx
004251B5    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                 ; test1_vm.0043D198
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x00421D3D

vPush

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
00421D3D    0FB60F           movzx ecx,byte ptr ds:[edi]
00421D43    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
00421D49    32CB             xor cl,bl
00421D55    F6D9             neg cl
00421D5B    80F1 0E          xor cl,0xE
00421D64    80E9 21          sub cl,0x21
00421D6D    F6D9             neg cl
00421D72    80F1 E2          xor cl,0xE2
00421D78    32D9             xor bl,cl
00421D81    8B140C           mov edx,dword ptr ss:[esp+ecx]
00421D87    8DB6 FCFFFFFF    lea esi,dword ptr ds:[esi-0x4]
00421D95    8916             mov dword ptr ds:[esi],edx
00421D9D    8B0F             mov ecx,dword ptr ds:[edi]
00455281    8DBF 04000000    lea edi,dword ptr ds:[edi+0x4]
00455289    33CB             xor ecx,ebx
0045528E    81E9 8C1F9123    sub ecx,0x23911F8C
00455294    D1C9             ror ecx,1
0043425D    49               dec ecx
00434263    F7D1             not ecx
00434267    33D9             xor ebx,ecx
0043426F    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0040D075    FC               cld
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                                   ; test1_vm.0043D19D
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x0040EB2E

vPush

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
0040EB2E    0FB60F           movzx ecx,byte ptr ds:[edi]
0040EB37    8DBF 01000000    lea edi,dword ptr ds:[edi+0x1]
0040EB40    32CB             xor cl,bl
0040EB4F    F6D9             neg cl
0040EB51    80F1 0E          xor cl,0xE
0040EB5B    80E9 21          sub cl,0x21
0040EB68    F6D9             neg cl
0040EB6E    80F1 E2          xor cl,0xE2
0040EB76    32D9             xor bl,cl
00440ED1    8B140C           mov edx,dword ptr ss:[esp+ecx]
00440ED8    81EE 04000000    sub esi,0x4
00440EDE    8916             mov dword ptr ds:[esi],edx
00440EE0    8B0F             mov ecx,dword ptr ds:[edi]
0041D911    81C7 04000000    add edi,0x4
0041D91A    33CB             xor ecx,ebx
0042EDBF    81E9 8C1F9123    sub ecx,0x23911F8C
0042AD19    D1C9             ror ecx,1
0042AD1B    49               dec ecx
0042AD1C    F7D1             not ecx
0042AD1E    33D9             xor ebx,ecx
004526DB    03E9             add ebp,ecx
00462636    8D5424 60        lea edx,dword ptr ss:[esp+0x60]
0046263A    3BF2             cmp esi,edx
00481402  ^\0F87 04A9FCFF    ja test1_vm.0044BD0C
00481408    8BC4             mov eax,esp
0048140A    B9 40000000      mov ecx,0x40
0048140F    8D5426 80        lea edx,dword ptr ds:[esi-0x80]
00467341    81E2 FCFFFFFF    and edx,-0x4
00467347    2BD1             sub edx,ecx
00467349    8BE2             mov esp,edx
0046734B    57               push edi
0045A32C    56               push esi
0045A32D    0FB7F2           movzx esi,dx
0045A330    9C               pushfd
00489ACC    8BF0             mov esi,eax
00489AD2    8BFA             mov edi,edx
0045B5BE    F3:A4            rep movs byte ptr es:[edi],byte ptr ds:[esi]
0045B5C2    9D               popfd
0045818E    5E               pop esi                                                                                               ; test1_vm.0043D1A2
00458194    5F               pop edi
0044BD0C    55               push ebp
0044BD0D    C3               retn	;0x00415543

VMExit

退出虚拟机,执行printf

Text
1
2
3
4
5
6
7
8
9
10
00415543    8BE6             mov esp,esi
0041554A    5D               pop ebp                                                       ; 0019FF2C
0041554B    5A               pop edx                                                       ; 0019FF2C
0041554D    5F               pop edi                                                       ; 0019FF2C
0041554E    5E               pop esi                                                       ; 0019FF2C
0041554F    5B               pop ebx                                                       ; 0019FF2C
00415550    9D               popfd
00415557    59               pop ecx                                                       ; 0019FF2C
00415558    58               pop eax                                                       ; 0019FF2C
0043B984    C3               retn

printf执行完毕后重新回到入口函数执行

2、防侧漏用苏菲

因为是push指令，需要检查栈是否发生溢出，防止vm_context被真实堆栈覆盖。

VMP堆栈检查

Text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
00462636    8D5424 60       lea edx,dword ptr ss:[esp+0x60]			;edx=v_esp+0x60
0046263A    3BF2            cmp esi,edx								;原始esp与edx比较
00481402  ^\0F87 04A9FCFF   ja test1_vm.0044BD0C					;如果原始esp>edx就正常返回,防止原始esp内容覆盖了vm_context
00481408    8BC4            mov eax,esp								;将v_esp传给eax
0048140A    B9 40000000     mov ecx,0x40
0048140F    8D5426 80       lea edx,dword ptr ds:[esi-0x80]			;把原始esp上台0x80大小,然后把地址传给edx
00467341    81E2 FCFFFFFF   and edx,-0x4
00467347    2BD1            sub edx,ecx
00467349    8BE2            mov esp,edx								;把新的堆栈地址传给v_esp
0046734B    57              push edi
0045A32C    56              push esi
0045A330    9C              pushfd
00489ACC    8BF0            mov esi,eax
00489AD2    8BFA            mov edi,edx
0045B5BE    F3:A4           rep movs byte ptr es:[edi],byte ptr ds:[esi] ;把原来v_esp的内容拷贝到新的v_esp
0045B5C2    9D              popfd
0045818E    5E              pop esi
00458194    5F              pop edi
0044BD0C    55              push ebp
0044BD0D    C3              retn									;0x004786D0

3、简单提几句

  • vmp在初始化时会保存当前环境，将寄存器通过push进行保存，退出虚拟机时恢复寄存器

  • 在执行系统函数时，vmp会退出虚拟机，恢复初始环境；函数执行完毕后重新进入虚拟机。

  • vmp的虚拟化技术是通过将一条一句进行拆分，然后以push和pop形式进行实现，因此被称为栈虚拟机。

  • opcode的第一个字节若为操作数，则该操作数指向为vm_context的其中一个寄存器；若为四字节则为下一个要跳转的handler地址。

  • vmp是真的恶心啊。

四、真理只在大炮射程之内

经过对VMP虚拟化代码的分析后，可以使用push和pop指令按照vmp虚拟化的方式对原始的汇编语句继续改写，进行娱乐。

模拟VMP指令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
#include <iostream>

char format[] = "%d\n";
char* p = format;
__declspec(naked) void my_test()
{
	__asm {
		push	ebp

		// mov ebp,esp
		push	esp
		pop		ebp

		push	ecx

		// mov    dword ptr[ebp - 4], 1
		push	1
		push	ebp
		push	0FFFFFFFCh
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[esp + 4]
		add		eax, edx
		mov		dword ptr[esp + 4], eax
		pop		esi
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[esp + 4]
		mov		dword ptr[eax], edx

		// mov    eax, dword ptr[ebp - 4]
		push	0FFFFFFFCh
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[esp + 4]
		add		eax, edx
		mov		dword ptr[esp + 4], eax
		pop		esi
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[eax]
		mov		dword ptr[esp], edx
		pop		eax

		// add    eax, 1
		push	1
		push	eax
		mov		eax,dword ptr[esp]
		mov		edx,dword ptr[esp+4]
		add		eax,edx
		mov		dword ptr[esp+4],eax
		pop		esi

		// mov    dword ptr[ebp - 4], eax
		push	ebp
		push	0FFFFFFFCh
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[esp + 4]
		add		eax, edx
		mov		dword ptr[esp + 4], eax
		pop		esi
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[esp + 4]
		mov		dword ptr[eax], edx
		pop		esi

		// mov    ecx, dword ptr[ebp - 4]
		push	ebp
		push	0FFFFFFFCh
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[esp + 4]
		add		eax, edx
		mov		dword ptr[esp + 4], eax
		pop		esi
		mov		eax, dword ptr[esp]
		mov		edx, dword ptr[eax]
		mov		dword ptr[esp], edx
		pop		ecx
		add		esp, 8

		push    ecx
		push    p

		//call返回的地址
		push	Next

		// call   00401070
		push	printf
		ret

		Next :

		//add	esp, 8
		push	8
		push	esp
		mov		eax,dword ptr[esp]
		mov		edx, dword ptr[esp+4]
		add		eax,edx
		mov		dword ptr[esp+4],eax
		pop		esi
		mov		esi,dword ptr[esp]

		xor eax, eax

		//mov esp,ebp
		push	ebp
		pop		esp

		pop		ebp
		ret
	}
}

int main()
{
	my_test();
}

运行无任何问题且能正常输出。

五、精准射击

RELATED POSTS
VMProtect分析-IAT修复
实现代码： GitHub - PlaneJun&#x2F;VMP-Import-Fix: VMP 3.X decrypt iat GitHub - PlaneJun&#x2F;vmp_fixiat: fix vmp-iat by unico...
逆向工程, 反混淆, VMProtect Dec 10 2 min
VMProtect分析-加载器
分析对象为网上流传的VMP源码 源码路径 函数名 行号 runtime\loader.cc SetupImage 884 1、反调试1.1 用户模式line:17492通过检测PEB-&gt;BeingDebugged,常规手段了，没什么好...
逆向工程, 反混淆, VMProtect Dec 08 1 min
VBHeader
逆向工程, 反混淆 Jan 01 1 min
修复IAT的奇淫技巧
在dump一些驱动样本的时候会遇到这样的情况。 这种是要修复导入表的，大多数解决办法就是给dump文件修复导入表，但是这种方式有点弊端。比如说面对的是一段shellcode代码的话就比较繁琐，所以并不适用。最佳解决办法就是把ntoskrnl...
逆向工程, 反混淆, VMP +1 Feb 19 1 min
2024鹅厂安全竞赛题解-决赛
一、题目 二、分析​ 决赛题目只有一个驱动，pe工具查看加了vmp，直接加载后dump进行分析。 1、注册机由于题目前置条件为防止card.txt到C盘根目录，因此猜测驱动内部为写死路径，因此搜索字符串，找到关键线索。 交叉引用到关键位置后...
游戏安全, CTF, 逆向工程 Jan 01 3 min
2024鹅厂安全竞赛题解-初赛
hack.exe反调试​ 对hack.exe脱外壳+IAT修复后，进行简单分析，可知存在三种检测反调试（不完全），后边调试dll_shellcode是还发现了有扫字符串。 ​ 1、调用NtQueryInformationProcess 扫描...
游戏安全, CTF, 逆向工程 Jan 01 1 min
View More Posts
